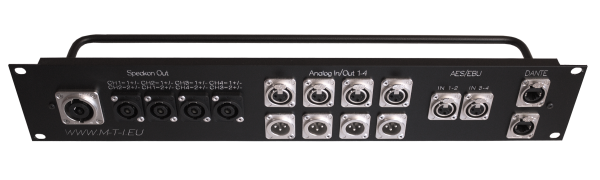

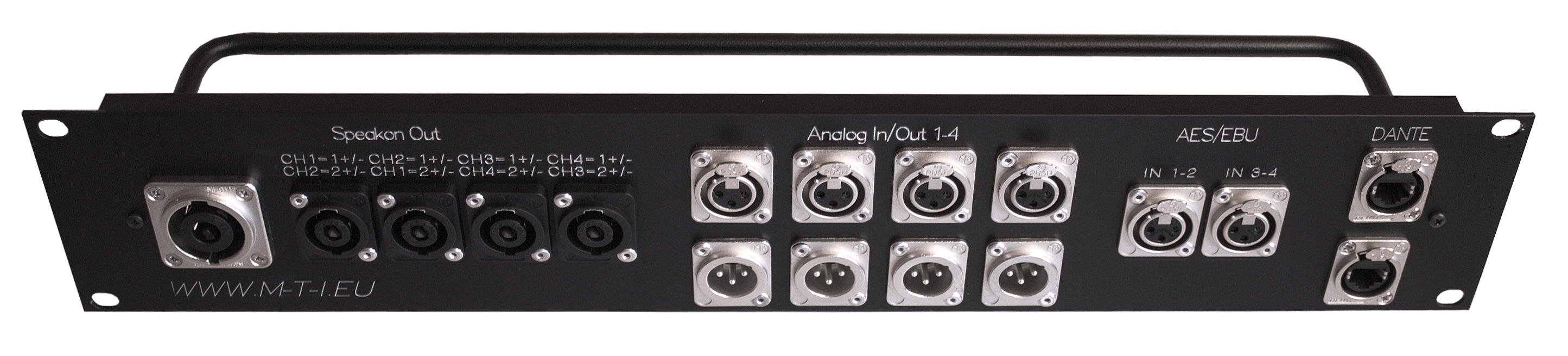

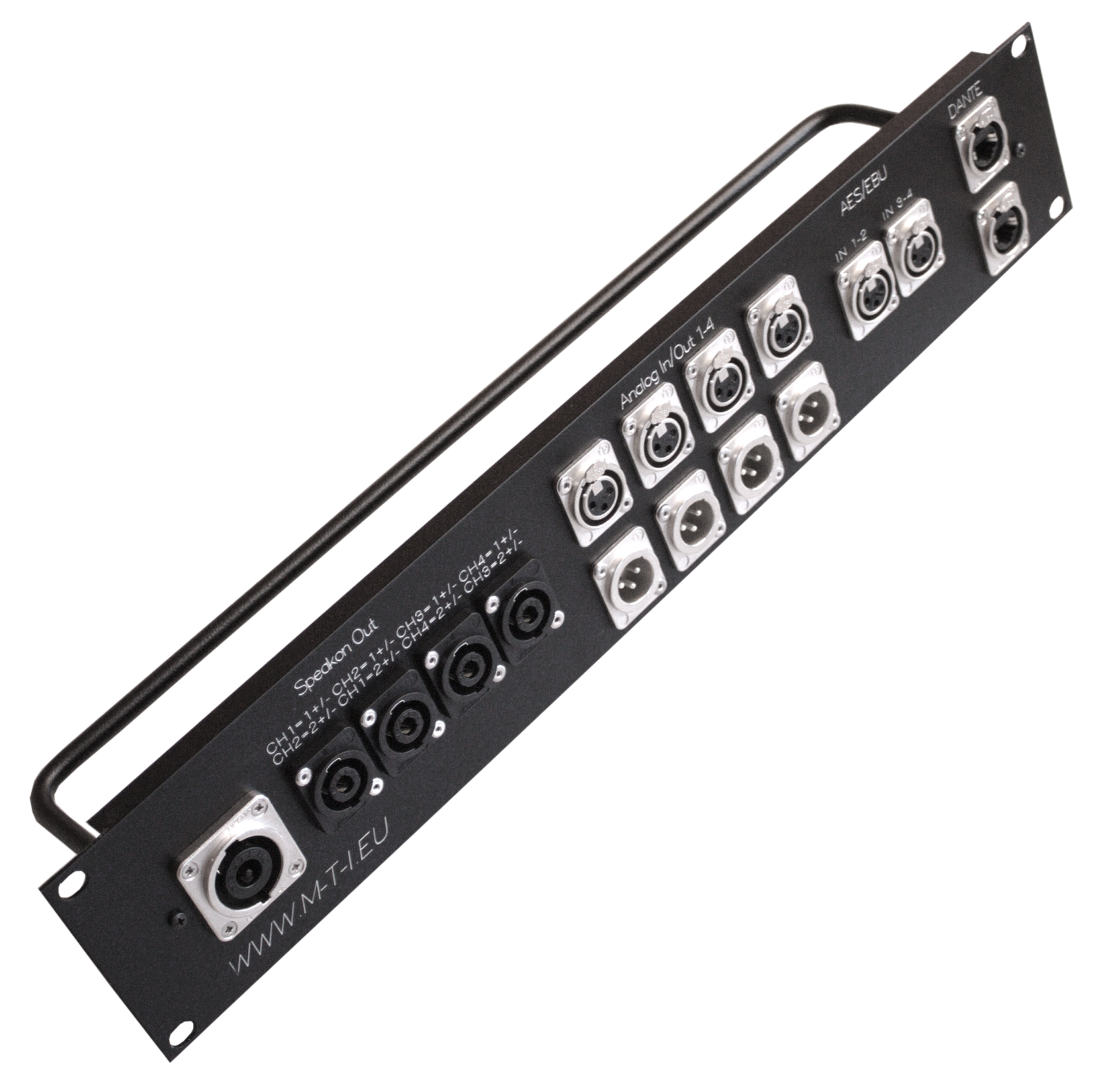

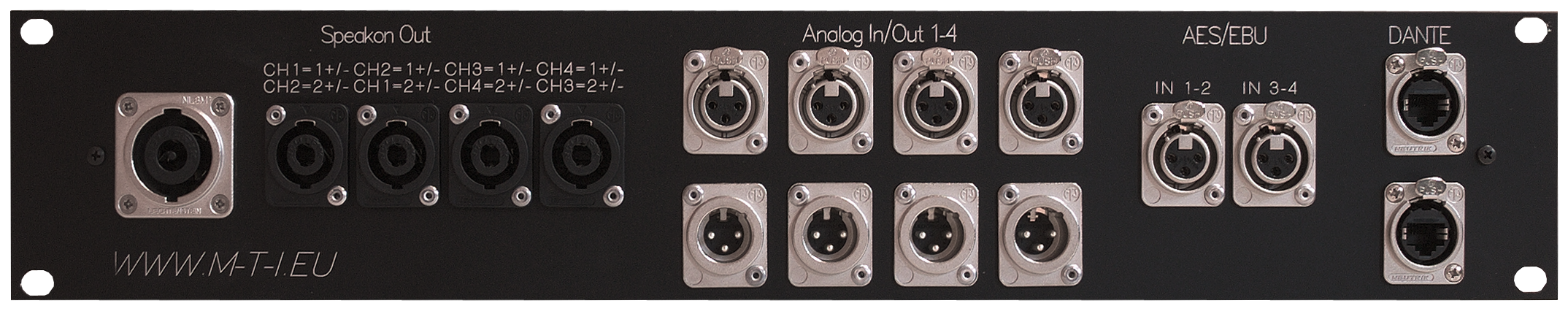

MPP-LAB-2HE19''-PA-Rackpanel
Lötabb.-Bügel, Speakon Channel-Gravur
schwarz eloxiert
verbaute MTI-Kabeltypen:
MLS825-A, MTI Prof. Speaker-Multicore
MMK222-110-TP42-SW, Prof. Digital-Microphone-Cable
MTI-CAT7-FLEX-PUR/H Datenleitung
Neutrik Front-Inputs:
1x Speakon 8pol.
4x XLR 3pol. fem.
4x XLR-3pol. male (parallel)
2x XLR 3pol. fem. AES/EBU
2x Ethernet Dante CAT7
Neutrik Front-Outputs:
4x Speakon 4pol.
4x XLR male 3pol
Neutrik Cable-Outputs:
1x Speakon 8pol. (Rear-Cable-Output)
4x XLR male 3pol. (Rear-Cable-Output)
2x XLR male 3pol. (Rear-Cable-Output AES-EBU)
2x Ethernet Dante CAT7 (Rear-Cable-Output
Kabellängen: 0,7 m
