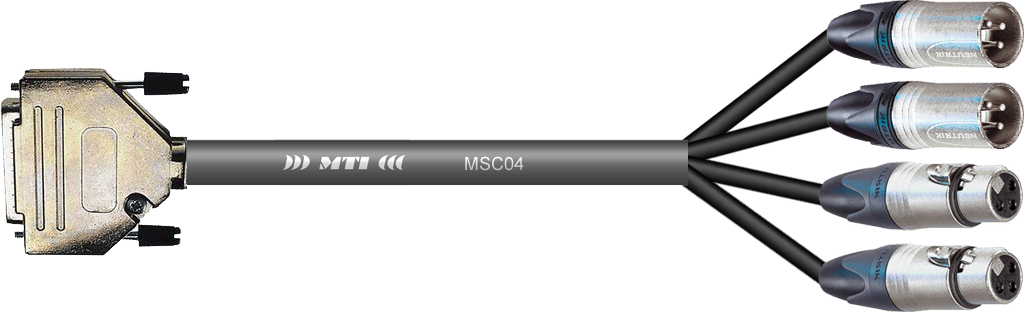

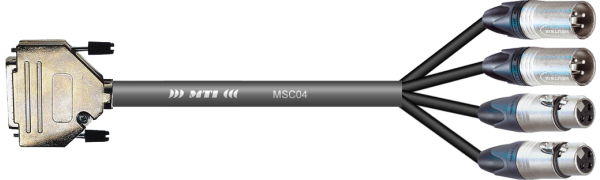

MTI Prof. Analog-Loom
4 Kanäle mit Einzelpaarmänteln
Typ: MSC04, Cu: 4x2x0,22 mm²
sauerstoff-frei (O.F.C.)
Einzelpaarmäntel, Einzelschirmung PT/AL
Mantel: PVC, cadmium-/ bleifrei (RoHS)
extrem flexibel, Durchmesser: 8,9 mm
Kapazitäten:
Leiter/Leiter 102 pF, Leiter/Schirm 193 pF
Dämpfung: max. 6,3 dB/100 m
Mantelfarbe: schwarz
MTI-Stecker: EMV Metallgehäuse
1x 15pol. Sub-D male
Neutrik Stecker:
Ch. 1 u. 2: Outputs Quantum 3U HW
2x XLR male 3pol. (NC3MXX)
Ch. 3 u. 4: Inputs Quantum 3U HW
2x XLR female 3pol. (NC3FXX)
Kanalkennzeichnung: Klippzahlen 1-4
Spliss: 0,5 m
