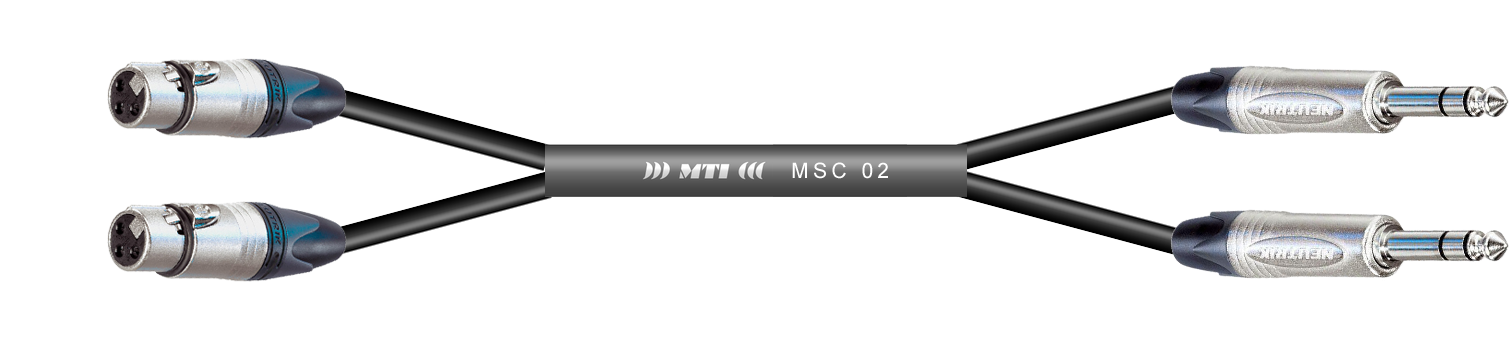

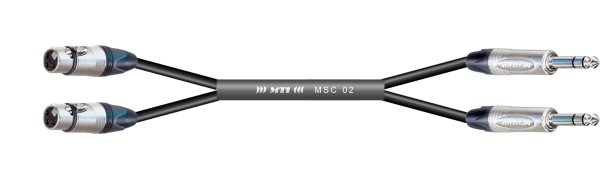

MSC7,0FPX3-2
MTI Prof. Analog-Loom
2 Kanäle mit Einzelpaarmänteln
Typ: MSC02, Cu: 2x2x0,22 mm²
sauerstoff-frei (O.F.C.)
Einzelpaarmäntel, Einzelschirmung PT/AL
Mantel: PVC, cadmium-/ bleifrei (RoHS)
extrem flexibel, Durchmesser: 8,9 mm
Kapazitäten:
Leiter/Leiter 102 pF, Leiter/Schirm 193 pF
Dämpfung: max. 6,3 dB/100 m
Mantelfarbe: schwarz
Neutrik Stecker:
2x XLR fem. 3pol. (NC3FXX)
2x Klinke 3pol. (NP3X)
Kanalkennzeichnung: Klippzahlen 1-2
Spliss: 0,3 m, Länge: 7,0 m
