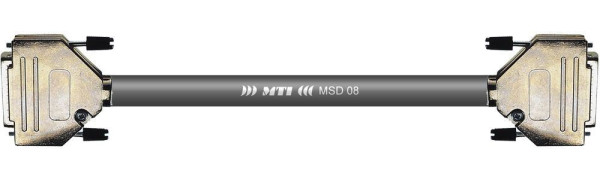

MTI First Class Prof. Analog-Loom
Yamaha-Tascam analog Pinout, 8 Kanäle
Typ: MSD08 Cu.: 8x2x0,14 mm²
sauerstoff-frei (O.F.C.)
Wellenwiderstand: 110 Ohm (AES/EBU)
Cu.-Leiterlitzen 0,10 mm, twisted pair
PE-Leiterisolation, Einzelpaarmäntel
Cu.-Wendelschirm, Cu.-Ges.-Flechtschirm
98% Bedeckung, Kapazitäten:
Leiter/Leiter 56 pF, Leiter/Schirm 105 pF
Dämpfung: max. 2,3 dB/100 m
Mantel: PVC, cadmium-/ bleifrei (RoHS)
extrem flexibel, Durchmesser: 10,6 mm
Mantelfarbe: schwarz
MTI Steckverbinder: EMV Metallgehäuse
2x MTI D-Sub 25pol. male Metall
Chrom-Randallschrauben 44 mm, inch
