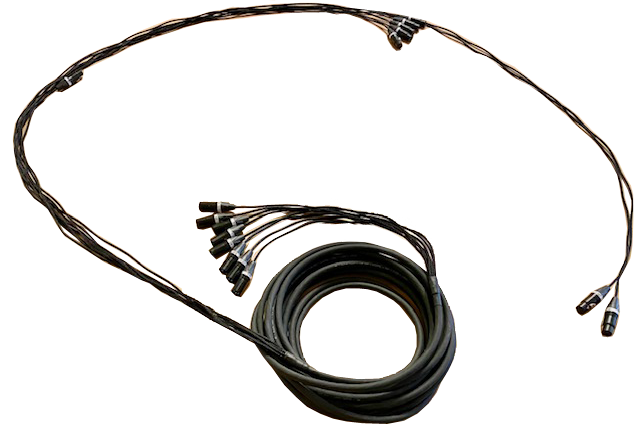

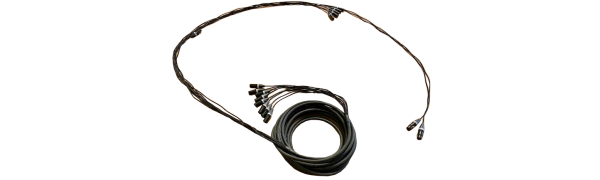

MSD15,0FMX3-8-G
Drumset-Verkabelung
*********************************
MTI Digital Multicore-Cable
Cu.: 8x 2x 0,14 mm²
Wellenwiderstand: 110 Ohm
Cu.-Leiterlitzen 0,10 mm, twisted pair
PE-Leiterisolation, Einzelpaarmäntel
Cu.-Wendelschirm, Cu.-Ges.-Flechtschirm
98% Bedeckung, Kapazitäten:
Leiter/Leiter 56 pF, Leiter/Schirm 105 pF
Dämpfung: max. 2,3 dB/100 m/1 MHz
Mantel: PUR, cadmium-/ bleifrei (RoHS)
extrem flexibel, Durchmesser: 9,8 mm
Mantelfarbe: schwarz, Länge: 15,0 m
Steckverbinder: Neutrik, schwarz
Seite 1 Ch. 1-8: 8x XLR 3pol. male (NC3MXX-BAG)
Seite 2:
Ch. 1: 1x XLR 3pol. fem. (NC3FXX-BAG) - Spliss: 3,0 m
Ch. 2: 1x XLR 3pol. fem. (NC3FXX-BAG) - Spliss: 3,0 m
Ch. 3: 1x XLR 3pol. fem. (NC3FXX-BAG) - Spliss: 1,0 m
Ch. 4-8: 5x XLR 3pol. fem. (NC3FXX-BAG) - Spliss: 2,0 m
Beschriftung beidseitig:
OH-1, OH-2, BD, SN, HH, TO-1, TO-2, TO-3
beidseitig Dymo unter transp. Codierring (XXCR)
Splisse: beidseitig mit Gewebeschutzschlauch, schwarz
