MSD50,0FMDX-FMX3-B-2-K
MTI Digital Multicore-Cable, Typ: MSD02
Cu: 2x2x0,14 mm², sauerstoff-frei (O.F.C.)
Wellenwiderstand: 110 Ohm
Cu.-Leiterlitzen 0,10 mm, twisted pair
PE-Leiterisolation, Einzelpaarmäntel
Cu.-Wendelschirm, Cu.-Ges.-Flechtschirm
98% Bedeckung, Kapazitäten:
Leiter/Leiter 56 pF, Leiter/Schirm 105 pF
Dämpfung: max. 2,3 dB/100 m
Mantel: PVC, cadmium-/ bleifrei (RoHS)
extrem flexibel, Durchmesser: 7,0 mm, schwarz
Neutrik Stecker: schwarz, Goldkontakte
1x XLR fem. 3pol. (NC3FXX-B)
1x XLR male 3pol. (NC3MXX-B)
1x XLR-Farbtülle gelb (BXX-4)
1x XLR-Farbtülle rot (BXX-2)
1x XLR Einbbu. 3pol. (NC3FDLX-B)
1x XLR Einbbst. 3pol. (NC3MDLX-B)
1x Beschriftgs.-Plättchen gelb (DSS-4)
1x Beschriftgs.-Plättchen rot (DSS-2)
Spliss: 0,5 m mit Gewebeschlauch
Gesamtlänge: 50,0 m, Dymo-Beschriftung: Ch.1, Ch. 2

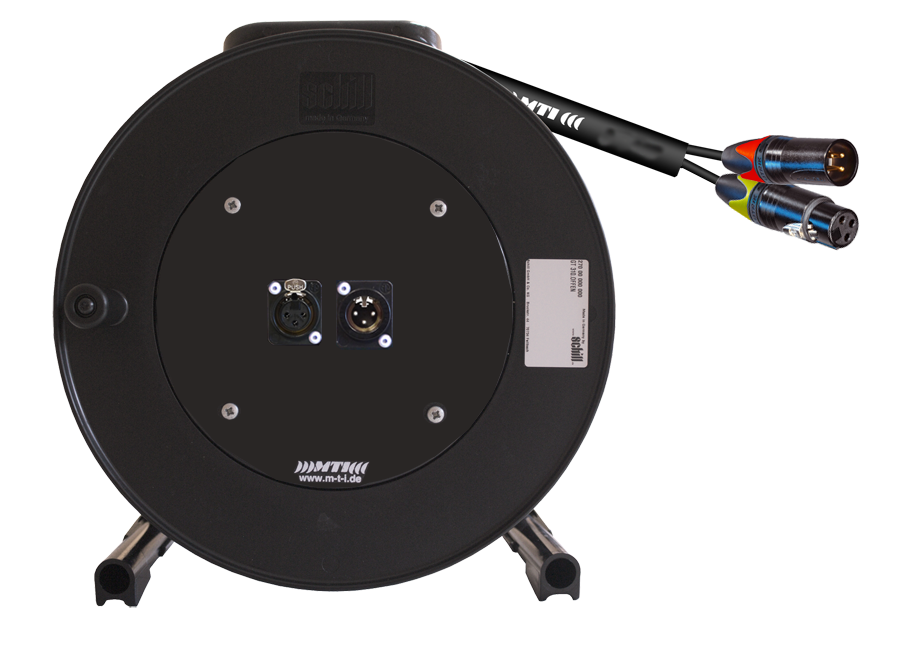

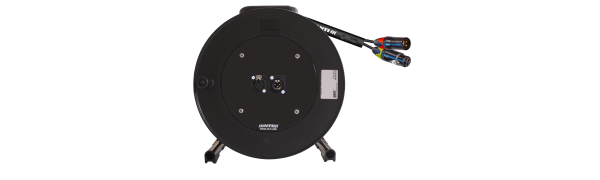

Schill-Kabeltrommel GT310.SO
Anwendungsbereich: ANALOG / DIGITAL
