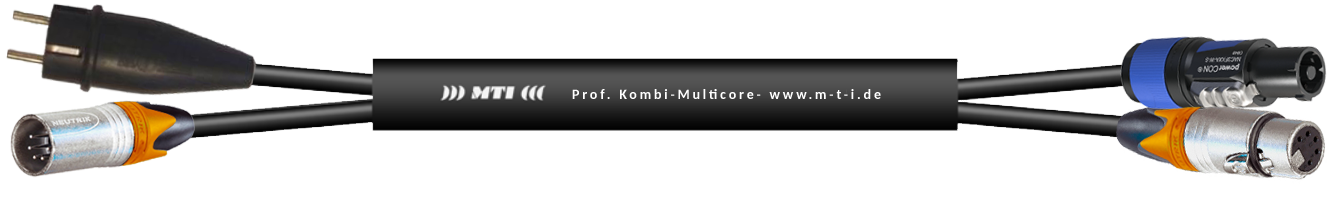

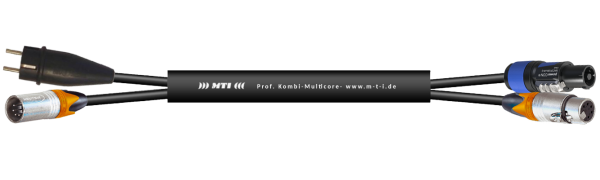

MTH5,0SSVGXM5-FCAXF5-XXR-3-DMX
MTI Prof. Kombi-Multicore MCP01
1x Audio 110 Ohm, Cu.: 1x 2x 0,22 mm² O.F.C.
1x Strom Cu.: 3x 1,5 mm², Durchmesser: 15,2 mm
Steckerverbinder 1. Seite:
MTI: Schukostecker 3p. Vollgummi (SST3-VG-SW)
Neutrik: 1x XLR 5pol. male (NC5MXX)
1x Farbcodierring orange (XXR-3)
Steckerverbinder 2. Seite:
Neutrik: Powercon blau 3pol. (NAC3FXXA-W-S)
Neutrik: 1x XLR 5pol. fem. (NC5FXX)
1x Farbcodierring orange (XXR-3)
Länge: 5,0 m , Spliss: 0,3 m
Anwendungsbebiet:
1x DMX-Ansteuerung mit 16 A. Strom
