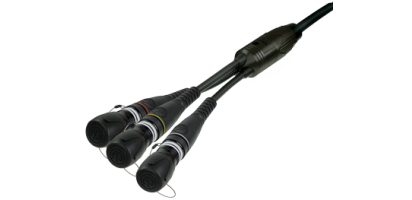

opticalCON SPLIT X-TREME

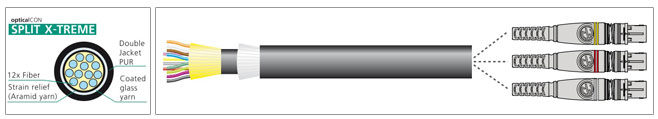

Multikanal (bis zu 12-Kanal) Kabellösung basierend auf opticalCON DUO, QUAD oder MTP®. Ausgezeichnete Zugentlastung durch Aramidfaser, schwarzer PUR Mantel. Das Kabel verfügt über einen mit Glasfaser gepanzerten Doppel-Mantel und ist schnittfest und gegen Nagetierfrass geschützt.

Der opticalCON Kabelstecker bietet optische PC Kanäle, basierend auf herkömmlicher und bewährter LC Verbindungstechnik, geschützt in einem robusten und langlebigen Metall Gehäuse. Einzigartig ist die automatisch angetriebene Schutzklappe mit Silikondichtung, die im nicht gesteckten Zustand die LWL vor Staub und Schmutz schützt. Weiters verfügt der opticalCON über die bewährte Push-Pull Verriegelung und eine exzellente Zugentlastung.

Der Kabelstecker ist vormontiert und ist nicht als Einzelteil erhältlich. Das assemblierte Kabel mit zusätzlicher Schutzkappe wird in einer Vielzahl von Längen angeboten und wird im Koffer, mit Trommel oder lose aufgewickelt geliefert.



Features & Benefits

  • opticalCON Multikanal Lösung basierend auf opticalCON DUO, QUAD oder MTP®
  • verfügt über einen mit Glasfaser gepanzerten Doppel-Mantel - schnittfest und gegen Nagetierfrass geschützt
  • Maximale Flexibilität durch Kombination von 2-, 4- und 12-Kanal Kabel
  • opticalCON Multi-Mode Glasfaserkabel bieten laser- und biegungsoptimierte OM3 Fasern
  • 1 m SPLIT: mechanisch beschädigte Kabelstecker können an leicht gekürztem Kabel neu angeschlossen werden
  • Farbkodierung zur Kanalidentifikation
  • Robustes LWL System
  • Für Punkt-zu-Punkt Multikanal Routing
  • Innovative sphärische Klappe garantiert geringe Wartungsarbeit
  • Staub- und wasserdicht gemäss Schutzklasse IP65 im gesteckten Zustand



Aufbau:

opticalCON SPLIT X-TREME

Artikel 1 bis 10 von 12 gesamt

pro Seite
Seite:
  1. 1
  2. 2

In absteigender Reihenfolge
  1. NKOYXM-01-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, QQQ-QQQ
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Single mode APC- NKOYXM-01-A

    Kombination:01 (3x Quad, 3x Quad)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  2. NKOYXS-02-A

    Neutrik opticalCON SPLIT X-TREME, Single mode, QQD-QQD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Single mode- NKOYXS-02-A

    Kombination: 02 (2x QUAD + 1x DUO, 2x QUAD + 1x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  3. NKOYXS-01-A

    Neutrik opticalCON SPLIT X-TREME, Single mode, QQQ-QQQ
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Single mode- NKOYXS-01-A

    Kombination: 01 (3x Quad, 3x Quad)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  4. NKOYXM-31-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, M-QQQ
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-31-A

    Kombination: 31 (1x MTP, 3x QUAD)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  5. NKOYXM-14-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, Q-DD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-14-A

    Kombination: 14 (1x QUAD, 2x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  6. NKOYXM-13-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, DD-DD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-13-A

    Kombination: 13 (2x DUO, 2x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  7. NKOYXM-12-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, QD-QD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-12-A

    Kombination: 12 (1x QUAD + 1x DUO,1x QUAD + 1x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  8. NKOYXM-04-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, DDD-DDD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-04-A

    Kombination: 04 (3x DUO, 3x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  9. NKOYXM-11-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, QQ-QQ
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-11-A

    Kombination: 11 (2x QUAD, 2x QUAD)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
  10. NKOYXM-03-A

    Neutrik opticalCON SPLIT X-TREME, Multimode, QDD-QDD
    Neutrik opticalCON®
    -
    Neutrik opticalCON®

    Neutrik opticalCON SPLIT X-TREME, Multimode- NKOYXM-03-A

    Kombination: 03 (1x QUAD + 2x DUO, 1x QUAD + 2x DUO)

    Länge
    10.00 m
    20.00 m
    50.00 m
    100.00 m
