MTI PROF. AUDIO MULTICORE-CABLE MSD 02
entsprechend Rundfunkpflichtenheft
2 sym. Kanäle mit Einzelpaarmänteln
Leiter: Cu: 2 x 2 x 0,14 mm², sauerstoff-frei (O.F.C), Cu.-Leiterlitzen 0,10 mm, Wellenwiderstand 110 Ohm, CU-Wendelschirm, CU-Gesamt-Flechtschirm, 98% Bedeckung
Kapazitäten: Leiter/Leiter 56 pF, Leiter/Schirm 105 pF
Dämpfung: max. 2,3 dB/100 m
Mantel: PVC, cadmium-/ bleifrei (RoHS), extrem flexibel
Durchmesser: 7,0 mm
Mantelfarbe: schwarz
MTI PROF. AUDIO MULTICORE-CABLE MSC 02
entsprechend Rundfunkpflichtenheft
2 sym. Kanäle mit Einzelpaarmänteln
Leiter: Cu: 2 x 2 x 0,22 mm², sauerstoff-frei (O.F.C.), Einzelpaarmäntel, Einzelschirmung PT/AL
Kapazitäten: Leiter/Leiter 102 pF, Leiter/Schirm 193 pF
Dämpfung: max. 6,3 dB/100 m
Mantel: PVC, cadmium-/ bleifrei (RoHS), extrem flexibel
Durchmesser: 8,0 mm
Mantelfarbe: schwarz
Klinke 3p. 6,3mm - Klinke 3p. 6,3mm
-

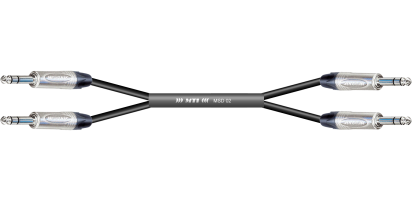

MSD PPX3-2
Neutrik NP3XMSD02Neutrik NP3X1.000 Steckzyklen garantiert
- Hallen-Bühnen, Produktions-Studios, Veranstaltungstechnik
→ vernickelte Kontakte
Ab: 55,20 €
Länge UVP (exkl. MwSt.) 1.00 m 55,20 €1.50 m 57,70 €2.00 m 60,20 €2.50 m 62,70 €3.00 m 65,20 €4.00 m 70,19 €5.00 m 75,19 €6.00 m 80,19 €7.00 m 85,18 €8.00 m 90,18 €9.00 m 95,18 €10.00 m 100,18 €15.00 m 125,16 €20.00 m 150,14 € -

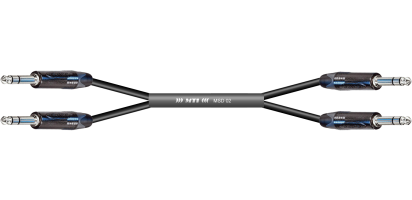

MSD PPX3-BAG-2
Neutrik NP3X-BAGMSD02Neutrik NP3X-BAG1.000 Steckzyklen garantiert
- Hallen-Bühnen, Produktions-Studios, Veranstaltungstechnik
→ vernickelte Kontakte
Ab: 55,39 €
Länge UVP (exkl. MwSt.) 1.00 m 55,39 €2.00 m 60,39 €2.50 m 62,89 €3.00 m 65,39 €4.00 m 70,38 €5.00 m 75,38 €6.00 m 80,38 €7.00 m 85,37 €8.00 m 90,37 €9.00 m 95,37 €10.00 m 100,36 €15.00 m 125,35 €20.00 m 150,33 € -

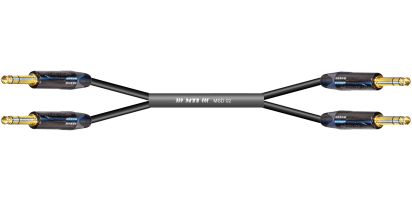

MSD PPX3-B-2
Neutrik NP3X-BMSD02Neutrik NP3X-B1.000 Steckzyklen garantiert
- Hallen-Bühnen, Produktions-Studios, Veranstaltungstechnik
→ vergoldete Kontakte
Ab: 60,11 €
Länge UVP (exkl. MwSt.) 1.00 m 60,11 €2.00 m 65,10 €2.50 m 67,60 €3.00 m 70,10 €4.00 m 75,10 €5.00 m 80,09 €6.00 m 85,09 €7.00 m 90,09 €8.00 m 95,08 €9.00 m 100,08 €10.00 m 105,08 €15.00 m 130,06 €20.00 m 155,05 €
